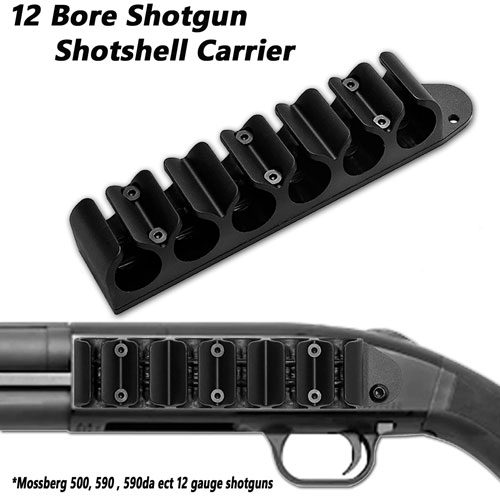

G&F Shotgun 12Bore Shotgun Shotshell Carrier Mossberg 500 590 Aluminum Base Polymer Side Saddle

Tactical Gun&Flower Aluminum base Polymer Mossberg Shotshell Carrier
Superior Material : Made of durable law enforcement grade polymer materials

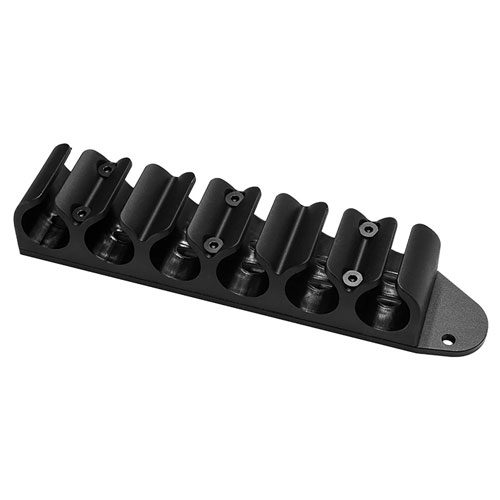

The combat-proven aluminum based polymer six shotshell carrier is a step forward in design and technology. State of the art design, injection molding and space age high-density plastics are combined to create this which cannot be duplicated in any other material.Elastic polymer rods helps keep shotshells in place.

Designed for military & police personnel. Great for civilians & off duty officers.

Modular: mounts directly to the side of the weapon for quick access to shells

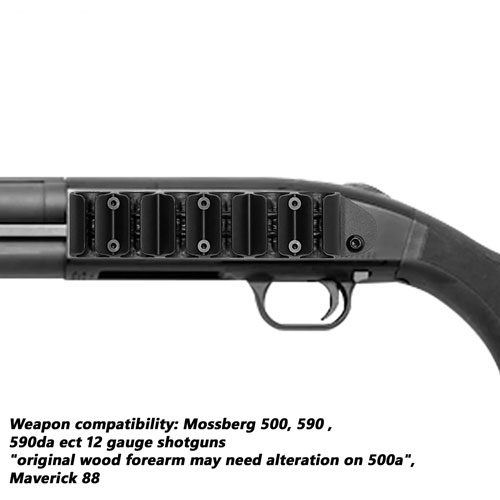

Weapon compatibility: Mossberg 500, 590 , 590da ect 12 gauge shotguns “original wood forearm may need alteration on 500a”, Maverick 88

Color: Black

Material: Durable law enforcement grade polymer

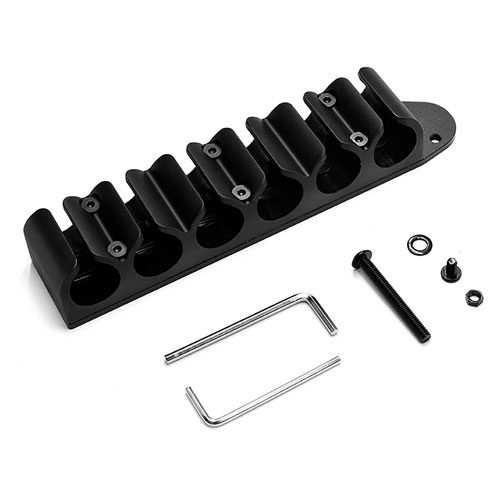

Package: 1 shotshell carrier, screws and allen wrench

1. Ensure the shotgun is unloaded and always pointed in a safe direction. 2. Open the action and place the shotgun on its side with the ejection port facing upwards. 3. Remove the #8-32 thread screw on the opposite side of the ejection port. 4. Then replace the removed screw with the longer #8-32 screw. 5. Now use the supplied #10-32 screw with washer to push out the pin (located just above the trigger).

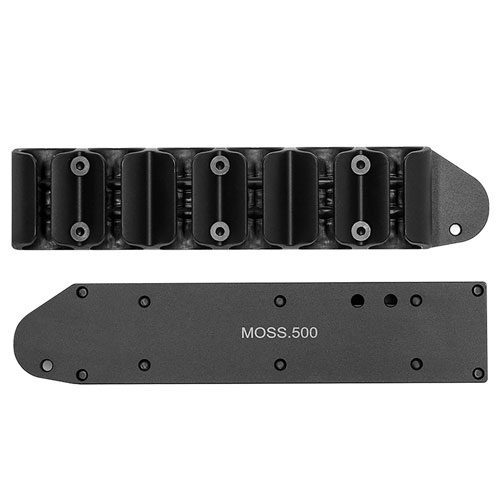

Leave the screw in the hole and turn the shotgun over. 6. Remove the six flat head screws from the side saddle to expose the counter-bored holes in the mounting plate. 7. Place the mounting plate onto the receiver with the counter-bored hole on the #8-32 screw and the tapped hole on the #10-32 screw.

Note: there are two counter-bored holes, the closest to the muzzle is for the 590DA, and the closest to the buttstock would be for the 500 and standard 590.

Lightly tighten the #10-32 screw but do not overtighten, as overtightening may lock up the shotguns action, if so then simply loosen the screws slightly.
Place the supplied nut on the #8-32 screw and tighten.

8. Replace the ammo holder onto the mounting plate and tighten the six fixing screws.

Please Note: some field grade shotguns may require modification to the forend.
